Domestic EcoGeo Heat Pump Wiring

Domestic Ecogeo heat pump units with text about cable requirements and connections.

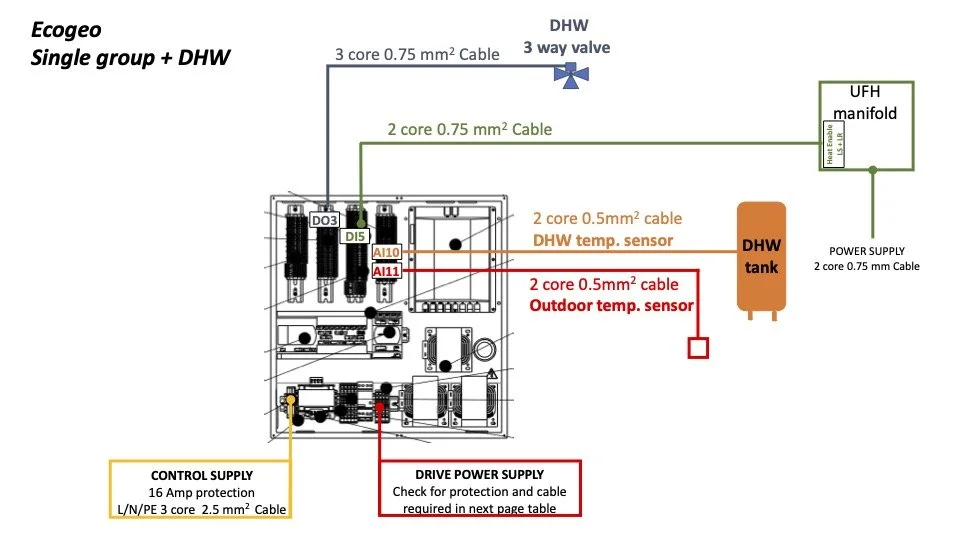

Diagram of a heating system labeled "Ecogeo Single group + DHW," showing connections for various components including a DHW tank, three-way valve, and UFH manifold. Labels indicate cable specifications and sensor connections, such as "2 core 0.5mm² cable DHW temp. sensor" and "3 core 0.75mm² Cable." Control and drive power supply instructions are noted with specific requirements.

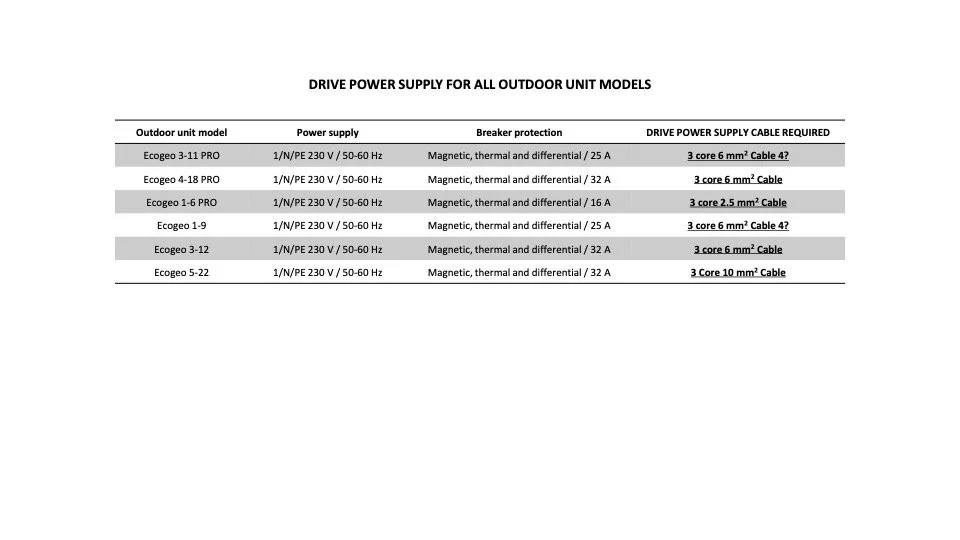

Table listing drive power supply information for various outdoor unit models, including model names, power supply details, breaker protection types, and drive power supply cable requirements.

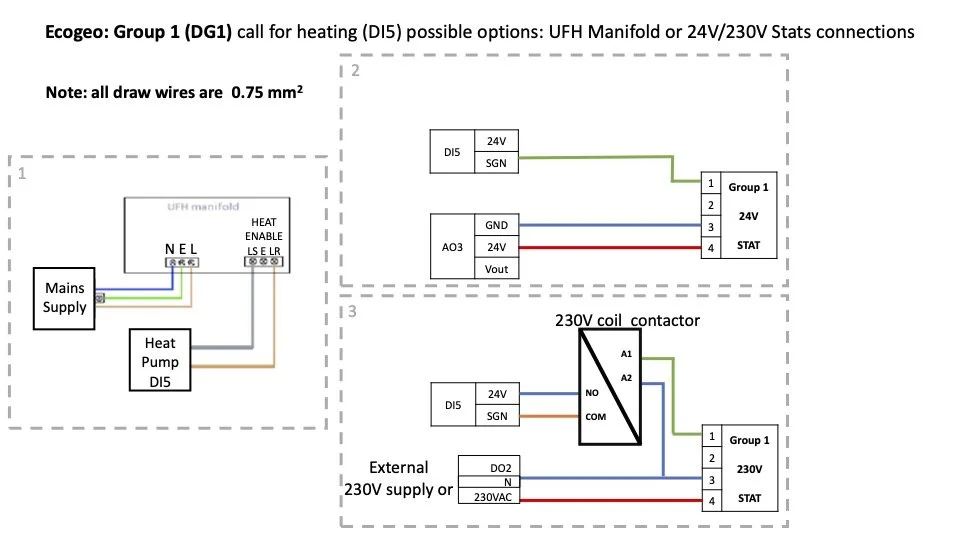

Technical diagram of Ecogeo Group 1 heating connections. Illustrates wiring for UFH manifold or 24V/230V stats connections. Includes mains supply, heat pump, DI5 input, 230V coil contactor, and wire gauge note. Labeled sections detail specific wiring paths and components.
Diagram showing EcoGeo Group 2 (SG2) heating connections for UFH Manifold or 24V/230V thermostats. Includes mains supply, heat pump, and temperature sensor requirements. Displays wiring setup with notes on wire gauge and external power options. Features a 230V coil contactor, labeled sections, and connection points for various components.
Schematic diagram for Ecogeo Group 3 heating options, showing wiring connections for UFH Manifold, 24V, and 230V Stats. Includes mains supply, heat pump connections, and 230V coil contactor with labeled components and wiring paths.
Diagram of an Ecogeo Group 4 heating system showing connections for UFH Manifold and 24V/230V Stats. Includes wiring details for mains supply, heat pump, temperature sensor, and 230V coil contactor. Notes specify wire size at 0.75 mm².
Diagram showing group zone valve activation outputs for CM unit and Banico valve color code connections. Four groups (DO5, DO6, DO14, DO15) are labeled, each with line (L), neutral (N), and protective earth (PE) connections to 230VAC valves. Includes Banico 2-port ZV and 3-port ZVD valve color codes: green/yellow, blue, white or brown wires.
Checklist of electrical checks for Ecogeo with fields for checking power supply connections, sensor connections, and activation questions.
