Easynet

Wiring, App First Configeration, Web App Customer Log In

Easynet Wiring

Electrical panel setup with Easynet module showing power supply and communication connections. The left side includes various wires and components labeled "J11 BMS2." The right side shows close-up images of communication and power connections, with notes on 230 VAC supply and comms cable with connectors.
Two images of a device showing connection options with labeled instructions. The top image shows ports for connecting an antenna and an Ethernet cable. The bottom image demonstrates connections for antenna and RJ45 Ethernet cable. Instructions describe setting up wireless and wired connections.

App First Configuration

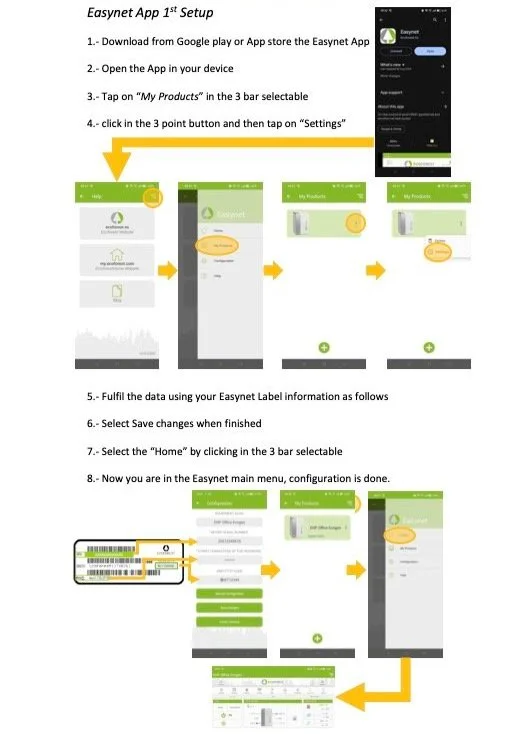

Infographic detailing the setup process for the Easynet app. Steps include downloading the app, opening it, accessing 'My Products' through a menu, tapping 'Settings', entering label information, saving changes, and navigating to the home screen. Illustrated with screen captures and arrows.

Web App Customer Log In

Instructions for registering on the Ecoforest website. Includes steps for accessing the site, signing up through the "sign up" link, entering personal information and verifying email through a link. Also mentions setting a password after verification.
Instructions for setting up equipment in a software interface, including steps to click '+ New' and fill out a form with an alias, serial number, password, and installer code. A barcode label is also shown.

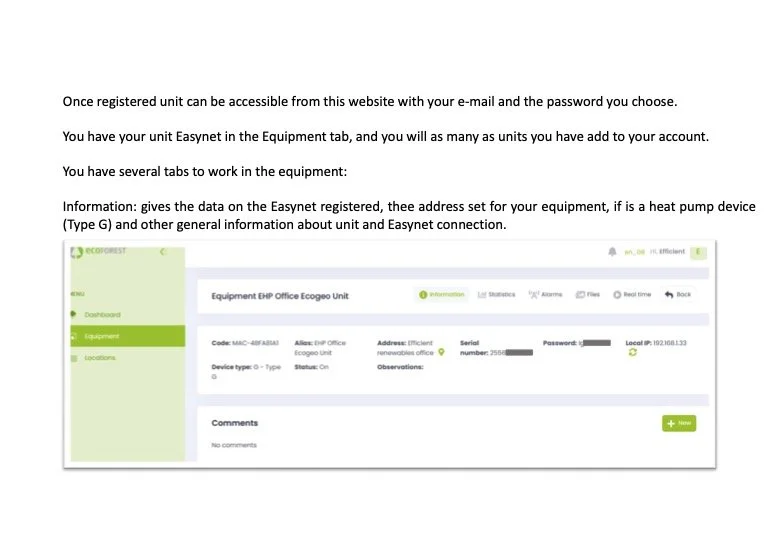

Screenshot of a software interface showing equipment details for a unit named EHP Office Ecogeo Unit from Easynet. The left side has a green navigation menu with options like 'Dashboard', 'Equipment', and 'Locations'. The main section displays information about the unit including code, address, device type, serial number, and local IP. Tabs like 'Information', 'List Statistics', 'Alarms', and 'Files' are available at the top. User instructions about accessing and managing units are visible above the interface screenshot.
Screenshot showing a data visualization software interface displaying statistics like temperatures and power consumption. The interface includes a date selection tool and charts with options to enable or disable data. Instructions are provided on how to navigate and modify chart data using options highlighted in red rectangles.
Screenshot of a dashboard interface for monitoring equipment, showing options for accessing units via remote or local links. Includes sections for information, data statistics, and connection status with specific device details like MAC address and serial number.
Ecoforest heat pump control panel interface showing operational settings and energy meter data, with menu options for ON/OFF, Schedule, and Heating.
